316SS Seamless flex bellows

316SS Seamless flex bellows

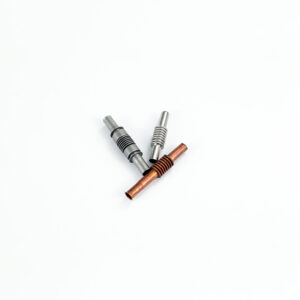

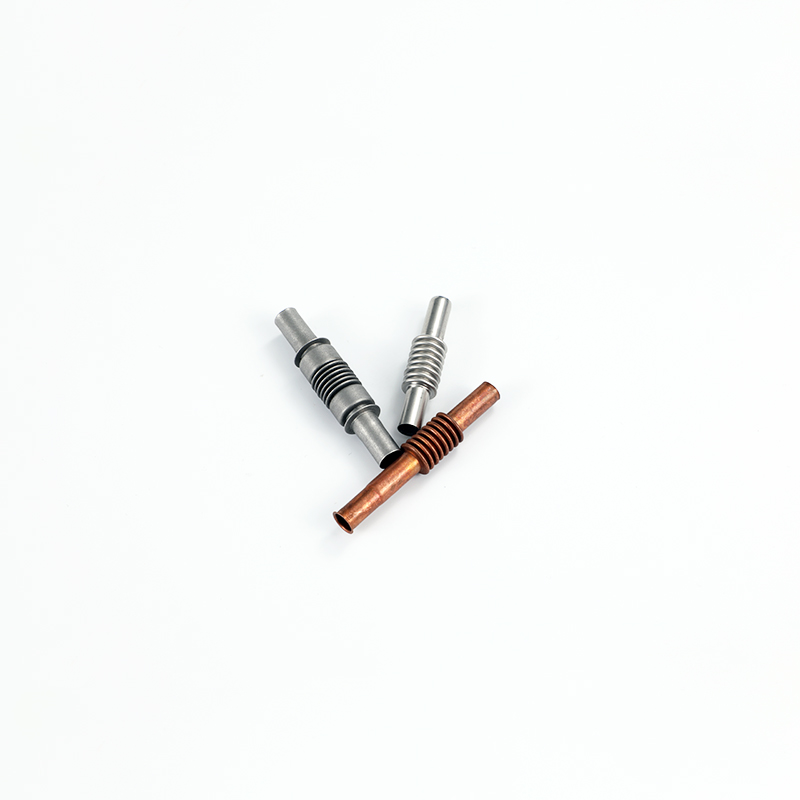

316SS Seamless flex bellows are flexible connectors formed integrally from a single metal tube blank through processes such as hydraulic forming or spinning. Owing to their unique weld-free construction, they excel in applications demanding high reliability, extended service life and stringent sealing performance.

seamless flex bellows

316SS Seamless flex bellows

Primary Application Areas
Given the aforementioned characteristics, seamless bellows are primarily employed in applications demanding extreme safety, longevity, and sealing integrity:

Aerospace and Defence

Aircraft Engines: Utilised in fuel, hydraulic, and lubrication lines to compensate for thermal expansion and vibration.

Spacecraft Propulsion Systems: Employed in rocket engine fuel/oxidiser transfer lines, withstanding extreme temperature and pressure cycling.

Military Vehicles: Ensuring pipeline system sealing under severe vibration and shock conditions.

High-Value Industrial Equipment

Semiconductor Manufacturing Equipment: Connecting wafer transfer robots, reaction chamber gas panels, etc., requiring ultra-high purity and zero particle generation.

Medical Devices: Used in surgical robot joint movement pipelines, anaesthesia machines, extracorporeal circulation equipment, etc., demanding absolute reliability and sterility.

Analytical instruments: Sample flow paths for chromatographs and mass spectrometers, guaranteeing leak-free operation and chemical inertness.

Energy and Chemicals

Nuclear power plants: Instrumentation piping and cooling systems, compensating for displacement while ensuring long-term integrity in radiation environments.

Petrochemicals: Connections for pumps, compressors, and heat exchangers, accommodating thermal displacement and safely conveying high-temperature, corrosive media.

Advanced Research and Vacuum Systems

Particle accelerators and synchrotron beamlines: Connecting components requiring ultra-high vacuum and frequent motion.

Cryogenic systems: Linking liquid nitrogen and liquid helium Dewars, compensating for significant thermal contraction.

High-Performance Powertrains

Motorsport and high-performance vehicles: Utilised in turbocharger intake and exhaust systems, withstanding extreme exhaust temperatures and pressure pulses.

Seamless bellows represent the pinnacle of craftsmanship in metal flexible element manufacturing. By sacrificing some displacement compensation capability (typically shorter than welded bellows), they achieve unparalleled reliability, longevity and sealing performance. Consequently, they are the preferred solution for critical systems where failure would incur extremely high costs or where maintenance is exceptionally difficult, ensuring safety, precision and long-term operation.
