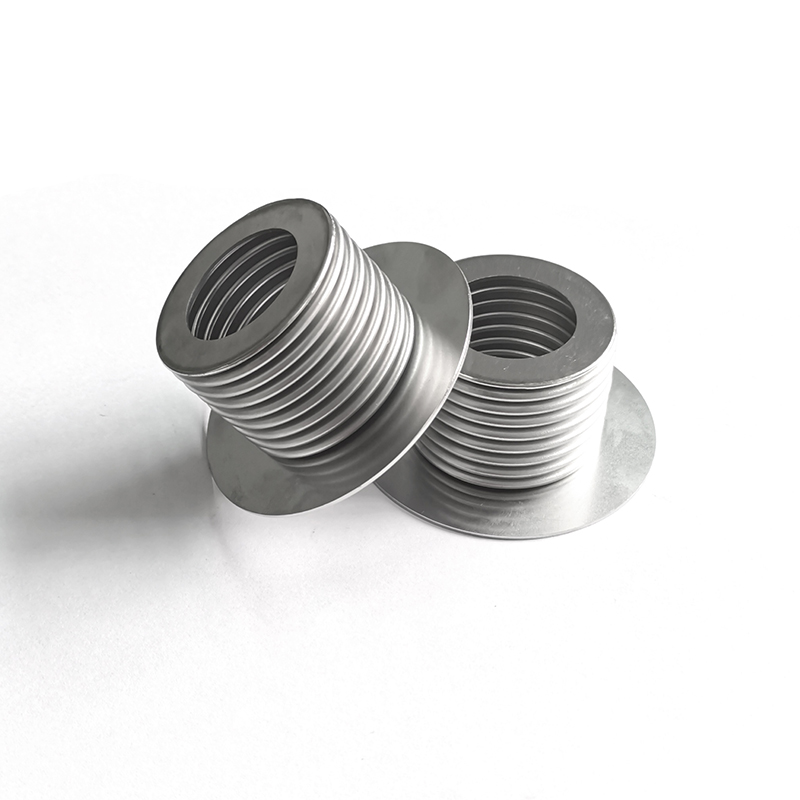

Welded Gasket Bellows are high-end industrial components integrating precision welding technology with flexible sealing structures. Formed through ring-shaped precision welding of metal diaphragms, they combine reliable sealing with structural flexibility. Capable of adapting to various demanding conditions, they are widely used in core sectors such as high-end equipment manufacturing, petrochemicals, and aerospace. These components are essential for solving sealing and compensation challenges in extreme environments.

Core Features

– Absolute Leak Tightness: Utilizing micro-beam plasma welding or laser welding techniques, weld widths are controlled within 0.3mm, with minimal heat-affected zones. This achieves ultra-high sealing precision, with leakage rates as low as 1×10⁻¹⁰ cc/sec, effectively preventing medium leakage. Suitable for toxic, flammable, corrosive, and high-pressure medium applications, it eliminates the need for auxiliary seals, avoiding the risks associated with traditional seal aging and failure.

– Extreme Environment Adaptability: Constructed from premium corrosion-resistant and high-temperature materials like 304/316 stainless steel, Hastelloy, and Inconel, it withstands extreme temperatures from -196°C to 1200°F (–312°C to 650°C) and pressures up to 15,000 psig (1034 bar). It delivers outstanding corrosion and radiation resistance, ensuring stable operation in chemical corrosive environments, nuclear reactors, and cryogenic conditions.

– Flexible Compensation & High Precision: Capable of multi-directional movement compensation (axial, lateral, angular), with expansion reaching 30% of free length and displacement accuracy controlled within ±0.1mm. Effectively absorbs equipment vibration, thermal expansion/contraction of pipelines, and installation deviations, preventing component damage from stress concentration and ensuring system stability.

– Long Service Life & Low Maintenance: Dynamic cycle life reaches hundreds of thousands, millions, or even billions of cycles—far exceeding traditional molded bellows and piston-type equipment. With no wear parts and no need for frequent pressurization or replacement, it significantly reduces maintenance costs and downtime losses. Ideal for long-term continuous industrial operation, it offers outstanding cost-effectiveness.

– Customizable Design: Tailored to specific client requirements, offering diameters ranging from 1/8“ to over 23”. Supports circular, non-circular, and other custom geometries to fit diverse installation spaces and operational conditions. Integrates flange, threaded, and other connection structures to accommodate varied installation needs.

Applications

– Oil & Gas Industry: Primarily used for pressure and temperature compensation in downhole logging instruments like gyroscopes and accelerometers; sealing components for high-pressure valves such as gas lift valves and chemical injection valves; medium volume compensation in electric submersible pumps (ESP); and flexible seals for subsea actuators and MWD/LWD equipment. Designed to withstand the harsh conditions of high temperatures, high pressures, and severe corrosion in downhole environments.

– Aerospace & Aviation: Used for sealing liquid oxygen/kerosene valves in rocket engines, pressure compensation in satellite thruster xenon tanks, precision compensation components in spacecraft instrumentation, and flexible connections/seals in parachute automatic release pressure regulators and aircraft hydraulic systems. Meets requirements for over 15 years of in-orbit operation and extreme temperature adaptation.

– Chemical & Pharmaceutical Industry: Suited for sealing and thermal expansion compensation in chemical reactors and piping systems, flexible connections for corrosive medium pipelines, and sterile sealing components in pharmaceutical equipment. Prevents medium contamination while meeting industry hygiene and safety standards, with resistance to strong acids, alkalis, and other corrosive media.

– Energy & Nuclear Industry: Sealing components for nuclear reactor control rod drive mechanisms, cryogenic seals for LNG valves, pipeline compensators for thermal power and new energy equipment, and vacuum retention elements for superconducting magnet cryogenic dewars. Features core advantages including neutron radiation resistance and high-temperature/high-pressure endurance.

– Precision Instrument & Semiconductor Industry: Vacuum chamber components for extreme ultraviolet (EUV) light sources in lithography machines.
