Valve shaft bellows

Valve shaft bellows

Valve shaft bellows serve as the core sealing component in industrial valves. Their primary value lies in achieving zero external leakage at the valve stem, accommodating extreme operating conditions, and significantly reducing maintenance costs. They are widely employed in demanding scenarios such as high-risk environments, high-cleanliness applications, and high-vacuum/high-temperature/cryogenic conditions.

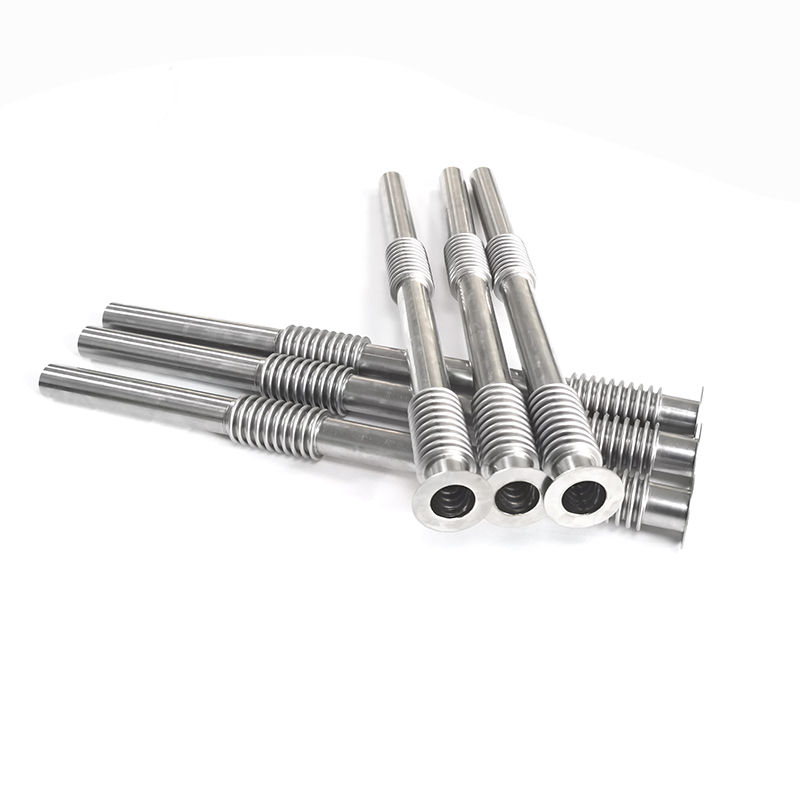

valve shaft bellows

Core Application Scenarios

1. Chemical and Petrochemical Industries (Core Applications)

Handling highly toxic, strongly corrosive, flammable, and explosive media: chlorine gas, phosgene, hydrofluoric acid, ammonia, hydrogen sulfide, aromatics, ethylene, etc.

Preventing fugitive emissions and meeting stringent leakage standards such as ISO 15848 and TA-Luft

Suitable for high-temperature thermal oil, high-pressure steam, and corrosive solvent pipelines

2. Oil & Gas / Energy

Natural gas, hydrogen, LNG, crude oil transportation—eliminating leaks and safety risks

Thermal/nuclear power: High-temperature/high-pressure steam, reactor coolants, radioactive media—zero leakage required

Geothermal, biomass power generation, and other high-temperature fluid systems

3. Semiconductor & Electronics Manufacturing (Ultra-Clean / High-Vacuum)

Specialty gas (silane, phosphine, arsine, chlorine, ammonia) transport: zero leakage + particle-free contamination

Vacuum chambers, CVD/etching/ion implantation equipment: maintaining ultra-high vacuum environments

4. Pharmaceuticals, Food, and Fine Chemicals

Sterile/high-purity media: water for injection, APIs, biologics, food-grade fluids—contamination prevention + leak prevention

Prevent external impurities from entering; comply with GMP and FDA cleanliness requirements

5. Cryogenic/Deep-Cold and Vacuum

Deep-cold media like LNG, liquid oxygen, liquid nitrogen, liquid helium (-196°C level)

High vacuum/ultra-high vacuum systems prevent air ingress from compromising vacuum integrity

6. Other Critical Applications

Nuclear Industry: Radioactive fluids, spent fuel processing—absolute sealing + radiation resistance

Aerospace & Defense: Propellants, specialty fluid systems

Precious Metals/High-Value Media: Prevent material loss (e.g., rare gases, high-purity chemicals)

Advantages (Compared to Traditional Packing Seals)

1. Zero External Leakage (Core Advantage)
The metal bellows form a fully enclosed metallic barrier, welded to the valve stem at one end and the valve bonnet at the other, completely sealing off leakage pathways.
Leak rates achieve ISO 15848 Class AH (zero helium leak detection), meeting the most stringent environmental and safety regulations.
Prevents leakage of toxic/flammable/radioactive media, safeguarding personnel and environmental safety.

2. Extended Lifespan and High Reliability
Premium metal bellows (Inconel, 316L, Hastelloy, etc.) achieve 100,000 to 5,000,000 operating cycles, far exceeding traditional packing.
Eliminates sliding friction and packing aging/wear issues, significantly reducing failure risks.
Withstands high-frequency cycling and extreme temperature/pressure fluctuations

3. Maintenance-Free / Low-Maintenance
Requires virtually no maintenance—no periodic tightening or packing replacement like conventional packing seals
Reduces downtime for maintenance, enhances continuous operation rates, and lowers operational costs
Eliminates packing dust/debris, preventing media contamination and system blockages

4. Extreme Condition Adaptability
Temperature: -270°C (cryogenic) to +800°C (high-temperature), far exceeding packing’s operating range
Pressure: Up to Class 2500 / PN 400, suitable for high-pressure systems
Media: Strong acids, strong alkalis, highly corrosive substances, high vacuum, radioactive materials, high-purity gases, etc.
Vacuum: Suitable for ultra-high vacuum (10⁻¹⁰ mbar level), with no outgassing or leakage

5. Frictionless, Low Energy Consumption, High Precision
Bellows enable elastic expansion/contraction without packing-to-stem sliding friction, resulting in low operating torque and minimal drive energy consumption
No friction loss or particulate contamination, ideal for high-cleanliness environments like semiconductor/pharmaceutical manufacturing
Valve regulation exhibits zero hysteresis, delivering superior control precision

6. Safety Redundancy (Optional)
Commonly employs dual sealing with bellows + packing: bellows as primary seal, packing as backup seal, further enhancing safety.
