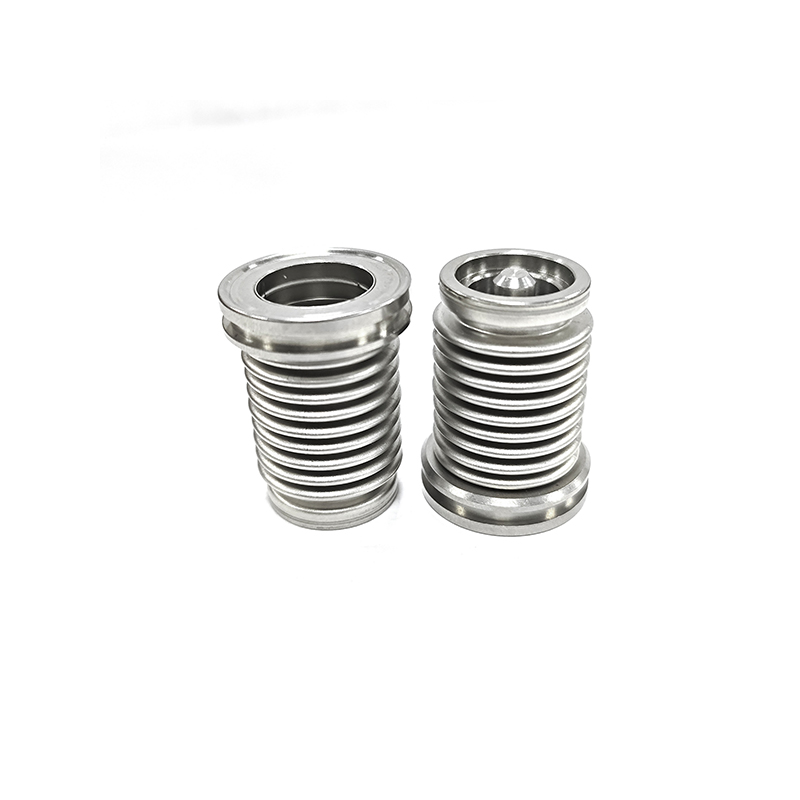

Pump bellows are thin-walled, flexible metallic components used in pumps to create a hermetic seal, absorb vibration, and compensate for misalignment.

pump bellows

pump bellows

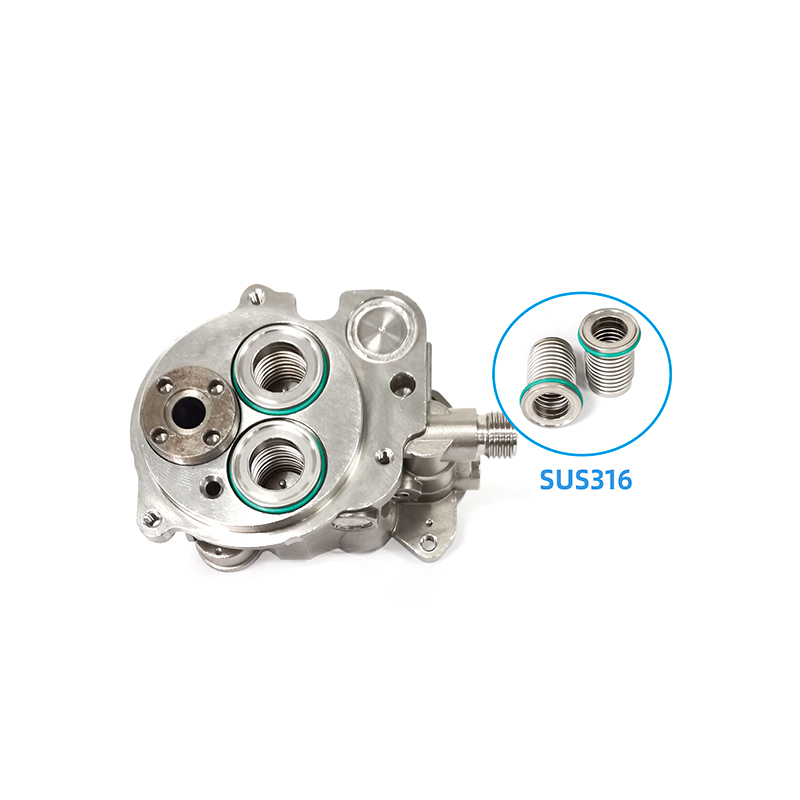

Fuel pump bellows
High-pressure pumps are required to supply fuel to direct-injection gasolineengines. These pumps can be designed as one- or multiple-piston pumps withoil-lubricated pistons. HYDRA precision bellows ensure that the fuel is not con-taminated by pump oil. For each piston, a bellows acts as a highly flexible sealand transfer element for pump movements. The bellows are mainly operatedin pressure-compensated mode and must execute over 12.000.000.000 pumpmovements over the life of a vehicle.

Advantages

1. Excellent Thermal Expansion & Vibration Absorption

   Effectively absorbs axial, lateral and angular movements caused by high-temperature exhaust, while isolating engine vibration, preventing pipeline cracking and leakage far better than rubber hoses.

2. High Temperature & Corrosion Resistance

   Made of stainless steel (304/316L) or high-temperature alloys, it withstands exhaust temperatures up to 1000°C, resists corrosion from exhaust gas and chemicals, and has a much longer service life than rubber parts.

3. Strong Durability & Low Maintenance

   With welded structure and no internal friction, it runs stably for a long time, reduces failure rate, lowers maintenance frequency and after-sales costs.

4. Compact Structure & Space Saving

   Compared with traditional pipe bends and loops, it shortens installation length, adapts to narrow engine compartments and complex layouts.

5. Good Flexibility & Customization

   Can be customized with flanges, sleeves or liners, matched to different sizes, pressures and movement requirements, suitable for various heavy-duty diesel engine models.

6. Vibration & Noise Reduction

   Reduces vibration transmission to chassis and cab, lowers noise from rigid pipe connection, improves vehicle comfort and environmental performance.
