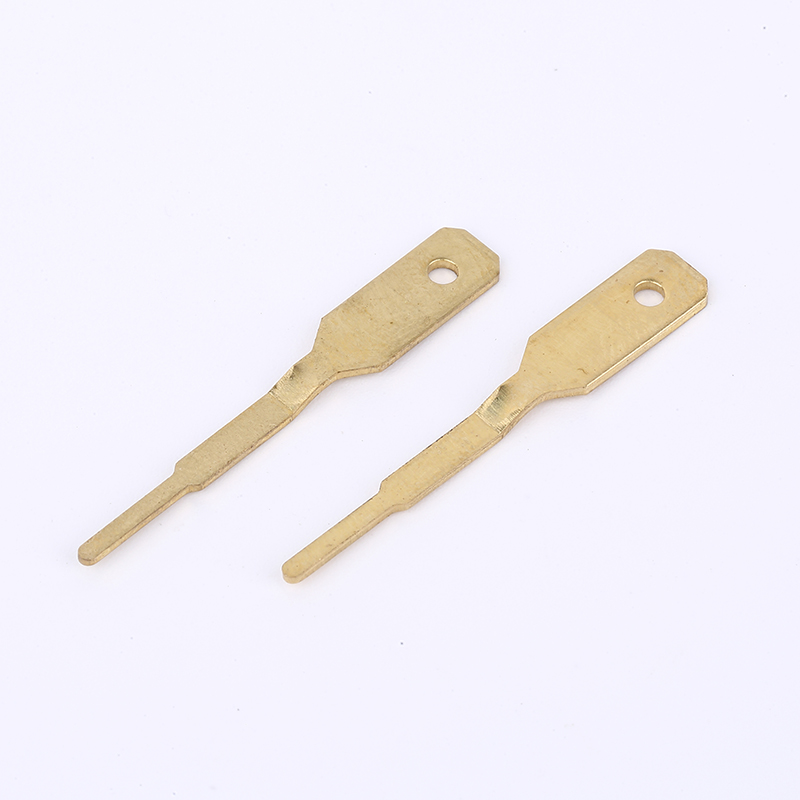

Brass Precision Stamped Inline Terminal
Manufactured using precision high-speed stamping dies, these components achieve exceptional dimensional accuracy with tolerances controlled to ±0.01mm. This is critical for ensuring interchangeability and connection reliability in high-volume production.
Brass Precision Stamped Inline Terminal
brass precision stamped inline terminal
Primary Applications
Our brass precision-stamped straight-through terminals are utilized in virtually all electronic and electrical fields requiring electrical signal or low-voltage power connections:
Printed Circuit Board Connections:
PCB-to-PCB Connections: Functioning as the male connector for board-to-board interfaces, they plug into female sockets on another PCB.
Internal Interconnections: Within devices, they connect the main PCB to daughter boards, displays, keyboards, switches, and other modules.
Wire Harness and Cable Assembly:
As wiring terminals, crimped or soldered onto conductors before being inserted into plastic housings to form complete harness assemblies. Widely used in home appliances, automotive systems, and industrial equipment.
Pins for Various Electronic Components:
Many components lack built-in pins and instead utilize brass terminals as lead terminals, such as:
Relays, transformers, fuse holders, and filter input/output pins.
Switch and button contact pins.
LED socket contact pins.
Plug-in and Connector Systems:
These serve as the fundamental contact components for most rectangular connectors, strip connectors, pin headers/receptacle strips, IDC connectors, etc. For example, a row of precision-stamped brass terminals embedded in a plastic insulator forms a standard pin header or female header connector.
Specific Industry Applications:
Home Appliances: Circuit connections inside air conditioners, washing machines, televisions, and microwave ovens.
Automotive Electronics: Low-voltage wiring harness connections for body control modules, sensors, audio systems, instrument panels, etc. (non-powertrain components).
Industrial Control: Board-to-board connections and signal transmission within PLCs, servo drives, inverters, and industrial computers.
Communication Equipment: Module connections in routers, switches, and base stations.
Computers & Peripherals: Power and signal interfaces on motherboards, hard drive jumpers, etc.
Consumer Electronics: Compact internal connections in toys, digital products, and smart hardware.
